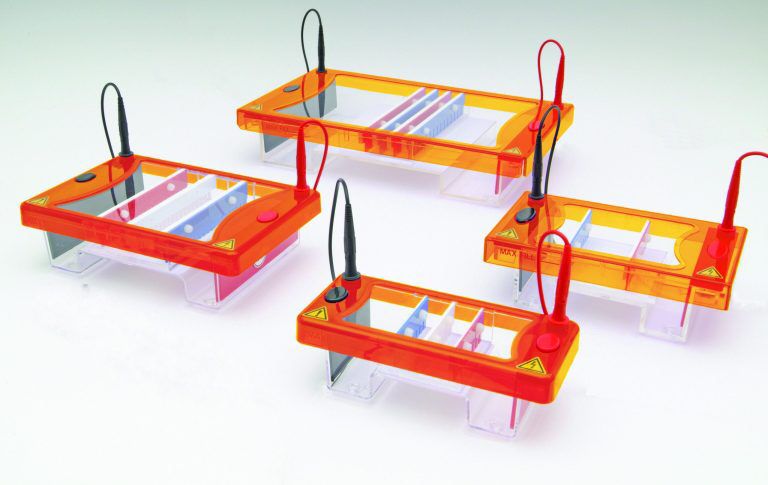

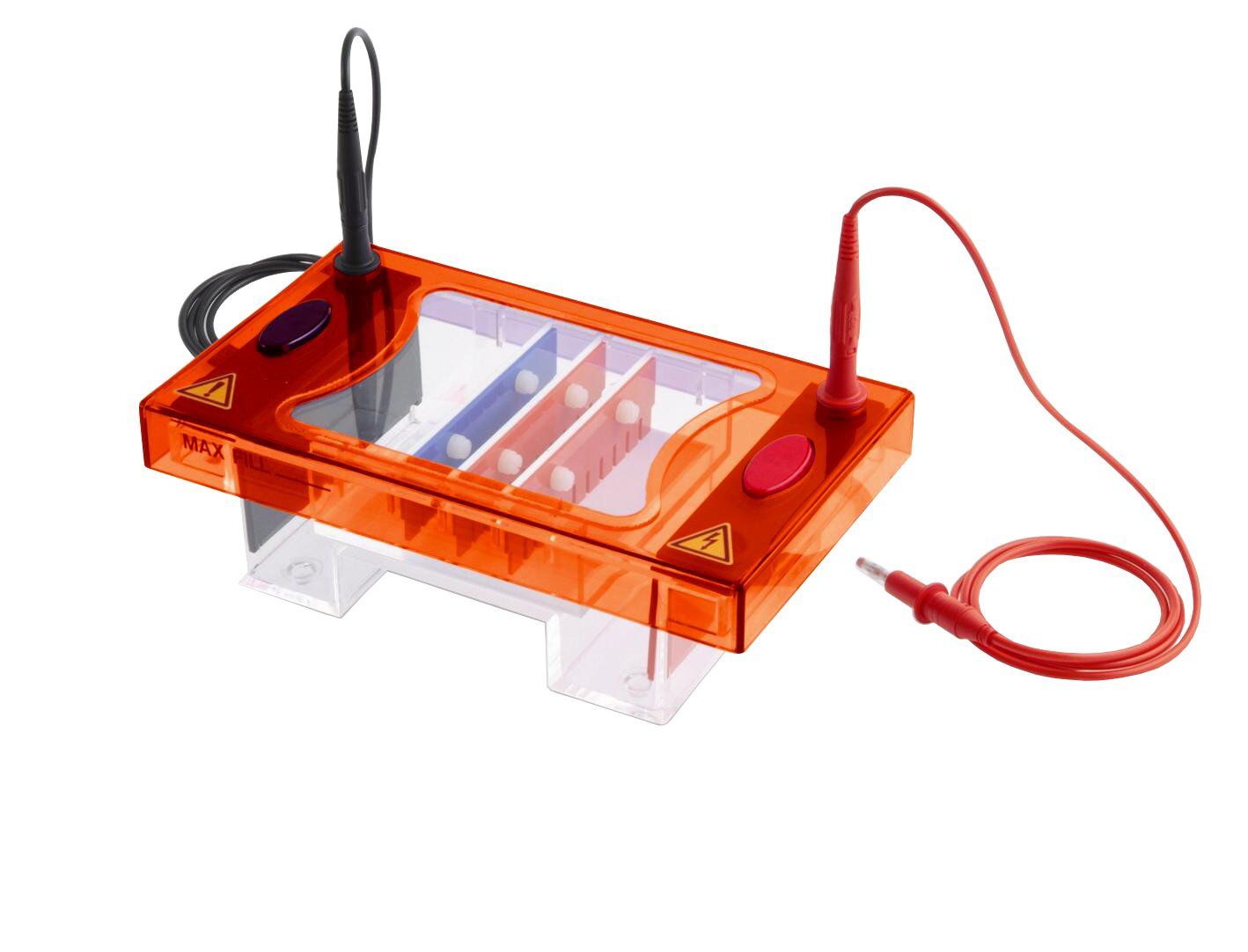

Midi Plus / Plus-1 / Plus-2
Horizontal Electrophoresis System
Introduction
The Midi series is designed for routine horizontal gel electrophoresis, offering a high degree of versatility. All gel tanks are manufactured using injection-molded construction, ensuring durability and a completely leak-proof environment.
A wide range of special combs is available to maximize sample throughput, making this system highly adaptable for different laboratory needs.
Available Models
Midi Plus
Includes 70×70 mm and 70×100 mm gel trays.
Accommodates up to 64 samples.
Ideal for low to medium sample numbers.
Midi Plus-1
Includes 100×70 mm and 100×100 mm gel trays.
Accommodates up to 100 samples per gel.
Perfect for medium sample numbers over short to medium gel run lengths.
Midi Plus-2
Includes 150×70 mm, 150×100 mm, and 150×150 mm gel trays.
Accommodates up to 210 samples per gel run.
Designed for large-scale sample throughput.
Complete System Packages
ME7-7-10
Includes:
1 × Electrophoresis tank & lid
1 × ME7-UV7 (70×70 mm UV tray)
1 × ME7-UV10 (70×100 mm UV tray)
2 × ME7-8-1 (8-sample combs, 1 mm thick)
1 × ME7-UVDAM (UV tray dams, 2 pcs)
1 × ME7-LG (Loading guides, set)
1 × Black & red electrophoresis cable
ME10-7-10
Includes:
1 × Electrophoresis tank & lid
1 × ME10-UV7 (100×70 mm UV tray)
1 × ME10-UV10 (100×100 mm UV tray)
2 × ME10-16-1 (16-sample combs, 1 mm thick)
1 × ME10-UVDAM (UV tray dams, 2 pcs)
1 × ME10-LG (Loading guides, set)
1 × Black & red electrophoresis cable
Key Features
Low buffer consumption for cost-efficient runs.
Single molded tank for durability and leak-proof design.
Multiple tray options:
Two tray options (ME7-7-10 & ME10-7-10).
Three tray options (ME15-7-10-15).

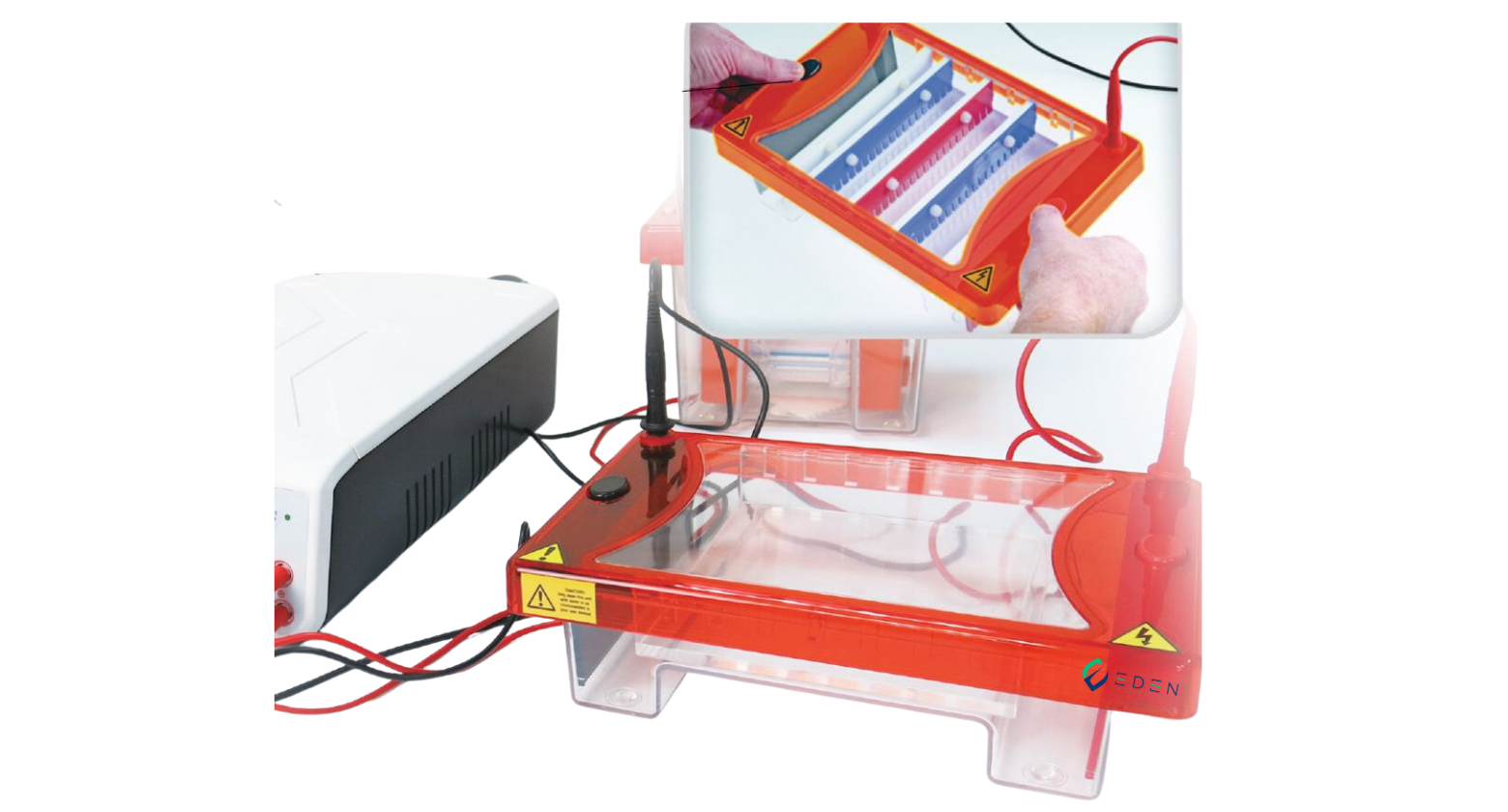

Easy sample loading for improved workflow.
Compatible with multi-channel pipettes.
Clear indicators for simple gel casting and running.
Specifications
| Cat. No. | MP-310 | MP-320 | MP-510 |
| Output Voltage / Inc. | 5 – 300V / 1V | 5 – 300 / 1V | 5 – 500 / 1V |
| Output Current / Inc. | 1 – 700mA / 1mA | 10 – 3,000mA / 10mA | 1 – 800mA / 10mA |
| Power | Output: 150W; Input: 200W | 300W | 300W |
| Rated Voltage | 100-240V~; 47-60Hz | 100-240V~: 47-60Hz | 100-240V~: 47-60Hz |
|
Type Of Output
|
1. Voltage or Current with automatic crossover | ||
| 2. When target constant mode is set, system automatically adjusts the two other parameter to maximum to allow constant run | |||
| (later could be changed by user) | |||
| Program Storage | 30 programmed files | ||
| Program Multi-Step | Up to 6 steps | ||
|
Editable Program Function
|
1.Typical running conditions program
2.Manual editable program |
||
| Control | Microprocessor controller | ||
|
Safety Device
|
No Load detect | ||
| Leakage detect | |||
| Over temperature protection | |||
| Over load detection | |||
| Sudden load change detection(could be enabled by proper setting) | |||
| Shrouded plugs and sockets | |||
|
Timer
|
Constant: 9999 (min) with alarm / continuous | ||
| Program: 999 (min) with alarm / continuous | |||
| Crossover | YES | ||
| Stackable | YES | ||
| Automatic Recovery After Power Failure | YES | ||
| Construction Material | PC housing and flame retardant ABS faceplate | ||
| Dimension (WxLxH) | Approx. 8.5″x13.2″x4.1″ (215x335x104mm) | ||
| Weight | Approx. 8.5″x13.2″x4.1″ (215x335x104mm) | ||
Ordering Information
| Cat. No. | Product Description | ||
| MP-310 | Lively 300V Power Supply | ||
| MP-320 | Lively 3AP Power Supply | ||
| MP-510 | Lively 500V Power Supply | ||
