Eden International TR – Biological Microscope
Introduction:

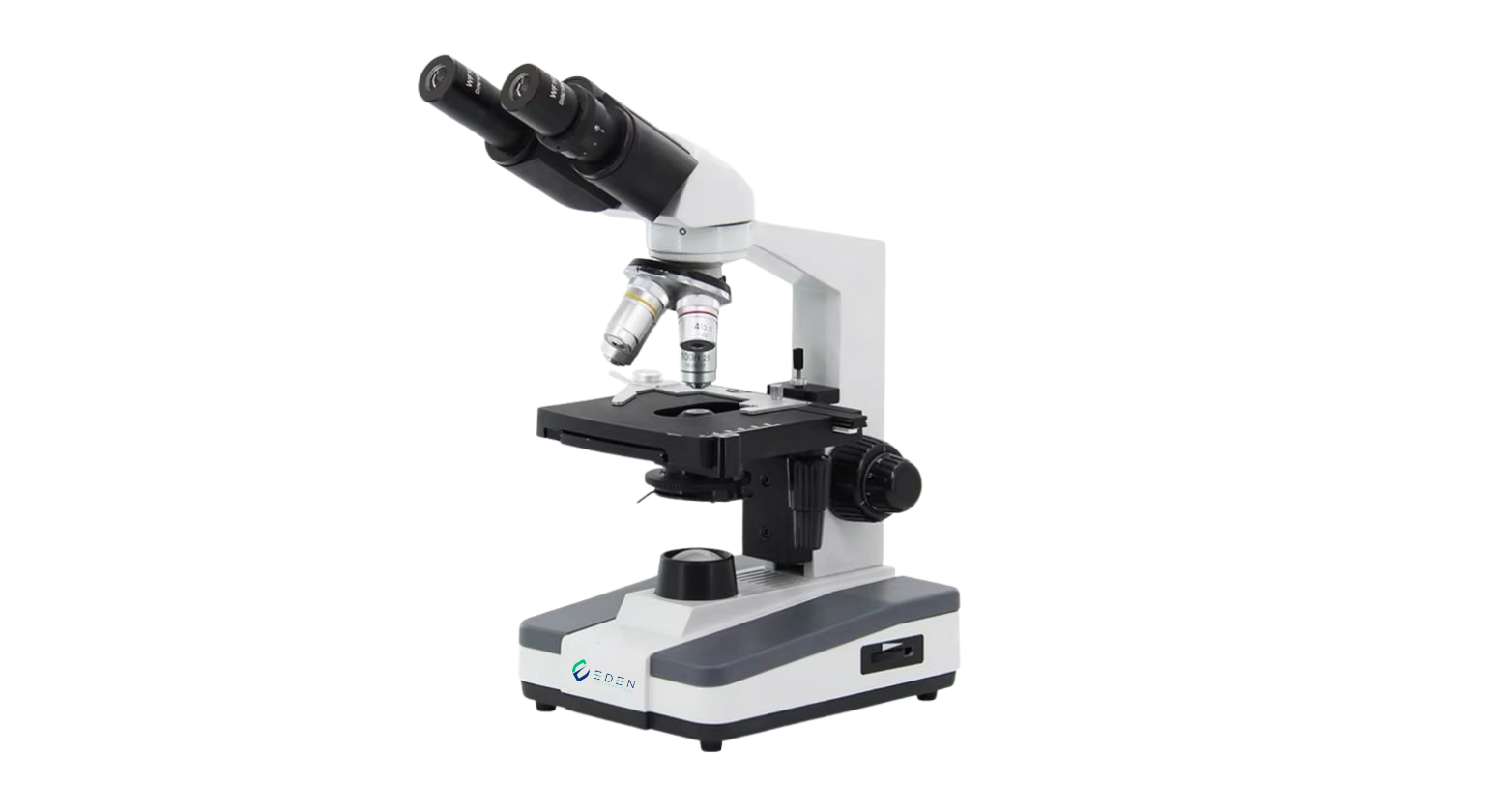

Eden International TR presents the Biological Microscope, a precision optical instrument designed for observing biological sections, cells, bacteria, living tissue cultures, fluid precipitation, and other transparent or translucent objects. It is also suitable for examining powders, fine particles, and similar materials. Widely used in medical and health units, universities, and research institutes, this microscope allows continuous observation of microorganism growth, cell division, bacterial reproduction, and tissue culture processes.
Applications:
-
Cytology
-
Parasitology
-
Oncology
-
Immunology
-
Genetic Engineering
-
Industrial Microbiology
-
Botany
Specifications:
-
Total Magnification: 40×–1000× (up to 40×–2500× with optional eyepieces)
-
Available Heads: Monocular, Dual View, Binocular, Trinocular (for photo and video capture)
-
Achromatic Objectives: 4×, 10×, 40×, 100× on a 4-hole nosepiece
-
Double-Layer Mechanical Stage: 125 × 130 mm, travel range 30 × 60 mm
-
Light Source: 6V20W halogen lamp, or optional 1W LED
| A11.1313 Biological Microscope | M | S | V | B | T | |||
|
Head
|
Monocular Head, 45° Inclined, 360° Rotatable | • | ||||||
| Dual Observation Head, 45°+45° Inclined | • | |||||||
| Dual Observation Head, 30°+90° Inclined | • | |||||||
| Seidentopf Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 55–75mm | • | |||||||
|
Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 55–75mm
|
• | |||||||
| Eyepiece | WF10x/18mm | • | • | • | • | • | ||
|
Objective
|
Achromatic 4x | • | • | • | • | • | ||
| Achromatic 10x | • | • | • | • | • | |||
| Achromatic 40x(S) | • | • | • | • | • | |||
| Achromatic 100x(S, Oil) | • | • | • | • | • | |||
| Nosepiece | Quadruple Revolving Nosepiece | • | • | • | • | • | ||
| Stage |
Double Layers Mechanical Stage 125x130mm / 60x30mm
|
• | • | • | • | • | ||
| Condenser | Abbe Condenser N.A.1.25, Φ2–Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32 | |||||||
| Focusing | Coarse & Fine Focusing Knob, Range 20mm, Scale 0.01mm | • | • | • | • | • | ||
| Light Source | Halogen Lamp 6V/20W | • | • | • | • | • | ||
|
Eyepiece
|
WF15x | |||||||
| WF16x | ||||||||
| WF20x | ||||||||
| WF25x | ||||||||
