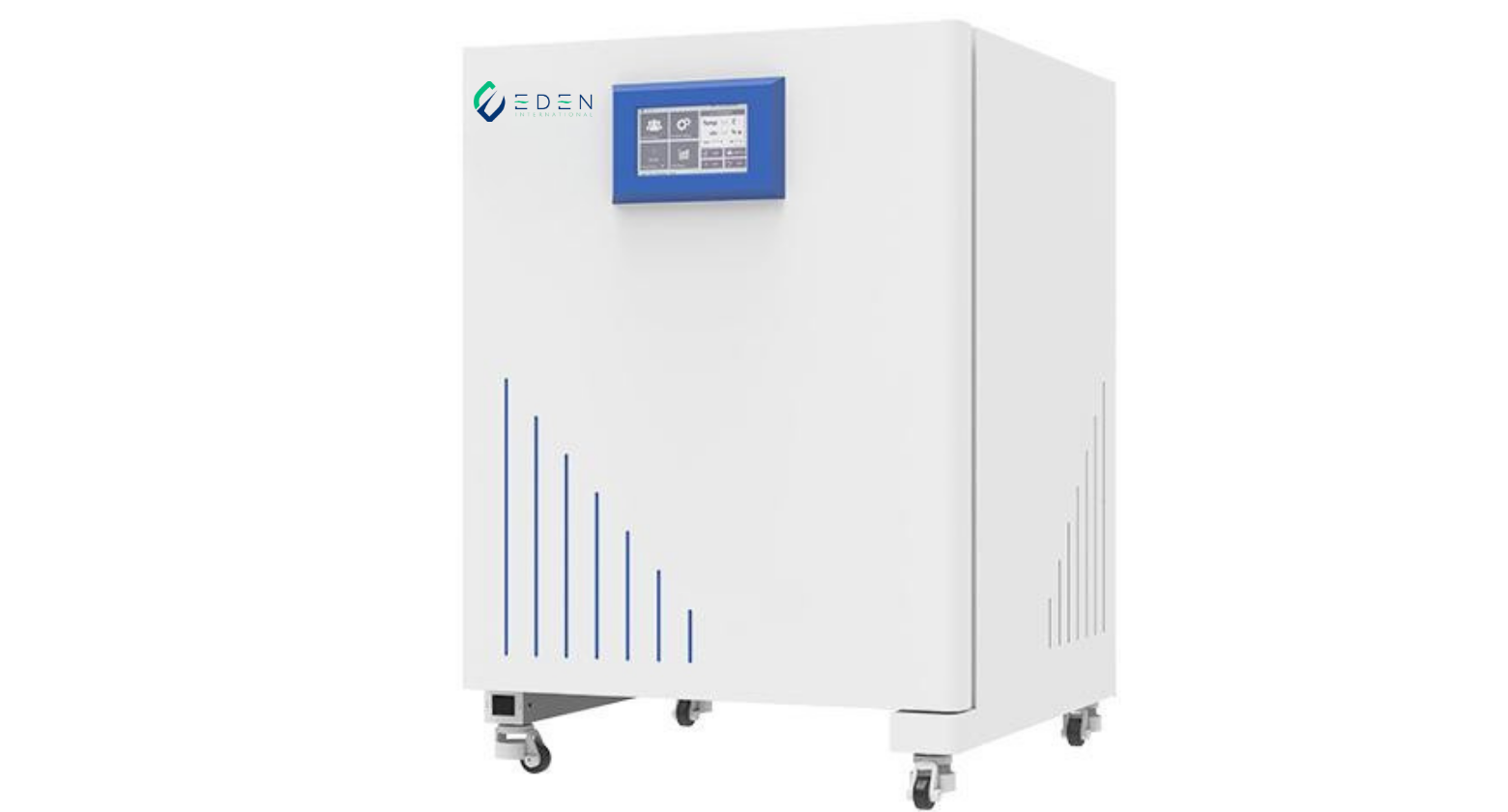

The CO₂ incubator is designed to provide a controlled environment for cell growth, tissue culture, and laboratory research. It serves as both a cell culture incubator and a laboratory incubator.
Key Features:
-
Dual-channel IR infrared sensor for precise CO₂ measurement.
-
Real-time humidity display for accurate monitoring.
-
Inner tank made of 304 stainless steel with semicircular corners for easy cleaning and durability.
-
Bottom water reservoir reduces the need for frequent refills.
-
Water level alarm to protect valuable samples.
-
Equipped with leakage current and over-voltage protection.
-
Over-temperature, under-temperature, and CO₂ concentration alarms for safe and stable operation.
| Parameter | EDEN -CO2-C50II | EDEN -CO2-C80II | EDEN -CO2-C160II |
| Type | Air jacket | ||
| Sterilization Type | 90℃ moist heat sterilization | ||
| Capacity | 50L | 80L | 160L |
| Temp. Sensor | PT100 | ||
| Temp. Range | RT+5~60℃ | ||
| Temp. Fluctuation | ±0.3℃ (@37℃) | ||
| Temp. Uniformity | ±0.5℃ (@37℃) | ||
| Temp. Precision | 0.1℃ | ||
| Timing Range | 0~999h or continuous | ||
| Display | 7-inch touch screen | ||
| CO₂ Control | IR infrared sensor with calibration certificate | ||
| CO₂ Range | 0~20vol% | ||
| CO₂ Uniformity | 0.2vol% | ||
| CO₂ Control Resolution | 0.1vol% | ||
| Ambient Temperature and Humidity | Ambient temperature: 5~30℃ (Recommendation: 25±2℃), Ambient humidity: ≤80% | ||
| Filter | CO₂ gas filter, HEPA filter | ||
| Power Supply | AC 220V, 50/60Hz (Standard); 110V, 50/60Hz (Optional) (External transformer) Wiring method: plug |
||
| Consumption | 300W | 650W | 700W |
| Shelves | 2pcs, adjustable | ||
| Standard Accessories | Shelves, USB interface, CO₂ relief valve, CO₂ gas filter, HEPA filter | ||
| Optional Accessories | Water pump, three-way connector | ||
| Internal Size (W*D*H) | 308*392*442mm | 368*452*517mm | 468*525*648mm |
| External Size (W*D*H) | 551*713*765mm | 611*773*841mm | 711*873*991mm |
| Package Size (W*D*H) | 645*807*902mm | 725*887*985mm | 820*1010*1128mm |
| Net Weight | 60kg | 72kg | 95kg |
| Gross Weight | 85kg | 93kg | 120kg |
